Bug? Reported channels only 7bit?

The issues found when using the Fixture Manager panel
Forum rules
Post Reply
User avatar
GGGss
Posts: 3319
Joined: Mon Sep 12, 2016 7:15 pm
Location: Belgium
Real Name: Fredje Gallon

While helping another user, I came up to this possible bug...

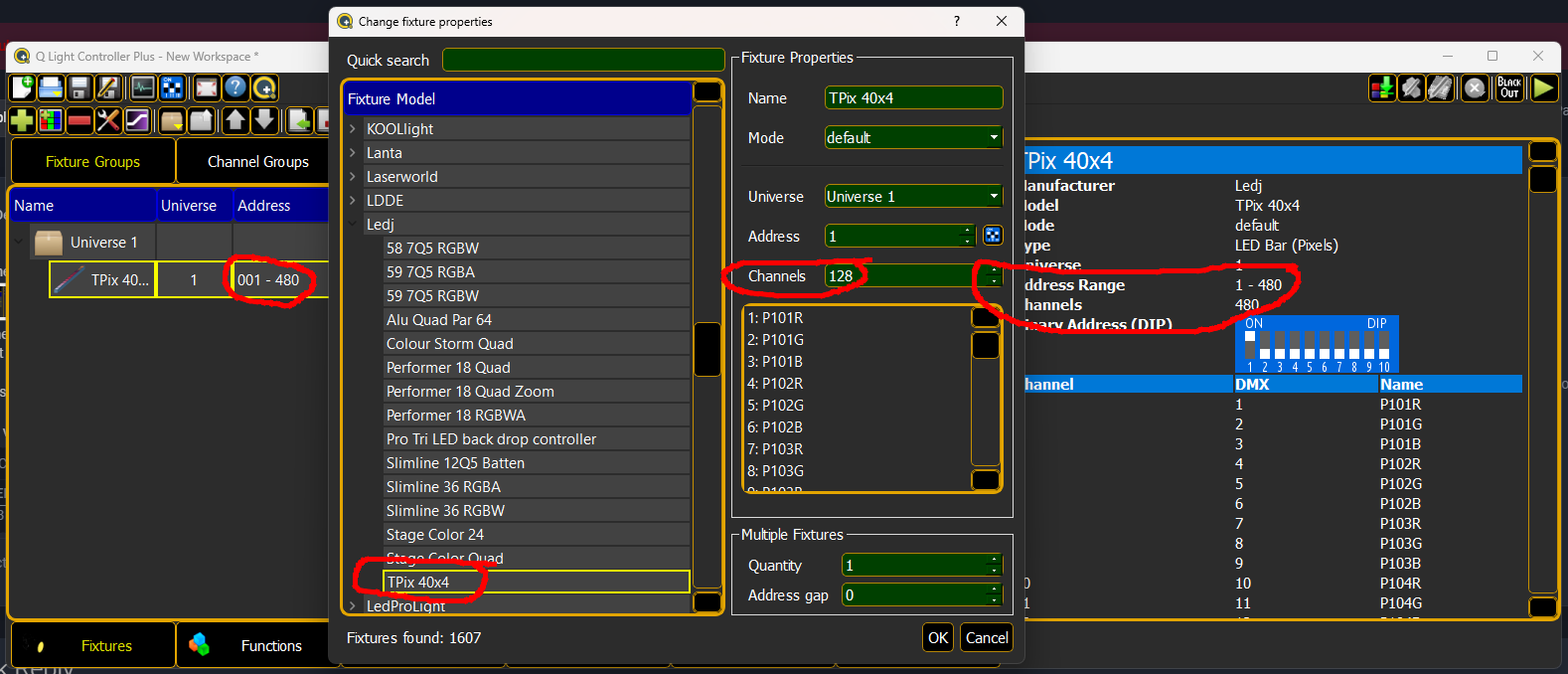

Capture_115 Dec. 16 22.07.png

With the annexed fixture profile added, I got 'only' 128 channels reported where it should have been 480!
(128 smells to a 7b value +1 = 128 max)

(My assumption is: Is that why RGB panels do not align quite as nicely as they should be? Being accounted as 7b values, where should the 8b channel count be in place?)

Please verify my findings... The reported channel count is not correct = bug status (did not report this on GitHub because of verification needed)
Attachments
LEDJ-Tpix.qxf
(56.93 KiB) Downloaded 45 times
All electric machines work on smoke... when the smoke escapes... they don't work anymore
Top
User avatar
GGGss
Posts: 3319
Joined: Mon Sep 12, 2016 7:15 pm
Location: Belgium
Real Name: Fredje Gallon

hmm .. I'm watching ghosts .. I might be very wrong but ->

*add the fixture to a new project,
*do nothing,
*open DMX monitor, and add this new fixture ...
*observe the 2D monitor
Capture_117 Dec. 16 22.17.png
Capture_117 Dec. 16 22.17.png (3.85 KiB) Viewed 10571 times
Why are those upper-addressed pixels in white?

[edit]
*add the fixture to a group with dimensions of 40x4
*Create an RGB-matrix group with that fixture
*add a RGB matrix to your project
*Select the group you just made
*hit preview
*observe the 2D DMX monitor
>> The white pixels never change...
Capture_118 Dec. 16 22.24.png
Capture_118 Dec. 16 22.24.png (4.51 KiB) Viewed 10571 times
All electric machines work on smoke... when the smoke escapes... they don't work anymore
Top
User avatar
GGGss
Posts: 3319
Joined: Mon Sep 12, 2016 7:15 pm
Location: Belgium
Real Name: Fredje Gallon

Helping to debug, here is some other info:

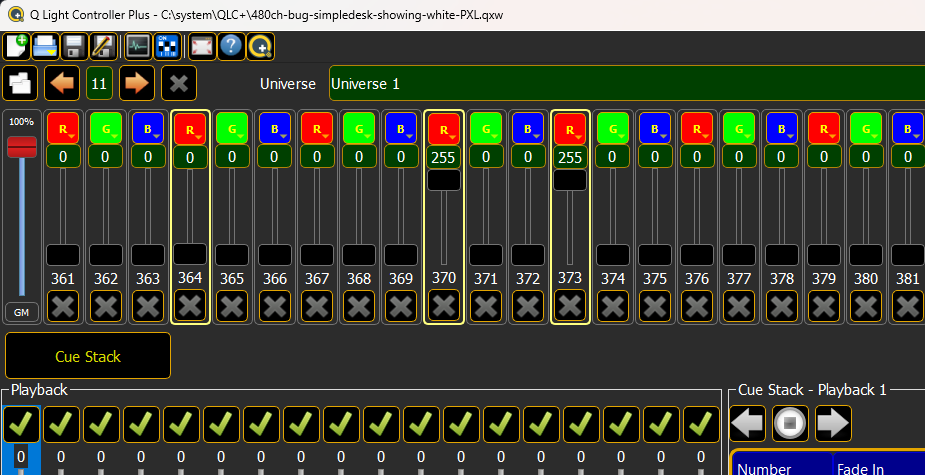

*simple desk: channels 370 & 373 fully lit:
Capture_119 Dec. 16 22.29.png
*result:
Capture_120 Dec. 16 22.29.png
Capture_120 Dec. 16 22.29.png (3.82 KiB) Viewed 10569 times
All electric machines work on smoke... when the smoke escapes... they don't work anymore
Top
User avatar
mcallegari
Posts: 4932
Joined: Sun Apr 12, 2015 9:09 am
Location: Italy
Real Name: Massimo Callegari
Contact:
Contact mcallegari

Oh wow, you found a very silly bug on the channel item maximum limit.
For some reason the original QLC author thought (20+ years ago) that fixtures would have never reach more than 128 channels! haha
https://github.com/mcallegari/qlcplus/b ... re.ui#L151
Easy to fix
